Hello fellow Shade Tree Mechanics!!! Tool fab and PSMH Toro Flywheel Key!!!

I spend most of my time fixing stuff at the side of the road but I often find myself under a tree.

Today I will be highlighting how to save around $25 by converting a 1/2 inch socket to a 1/4 inch socket.

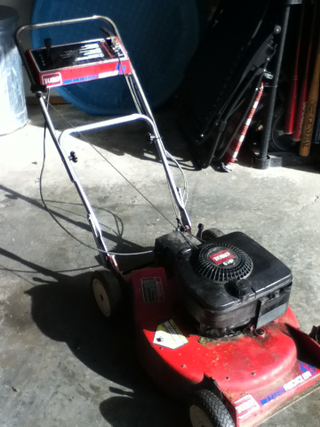

So as many of you know I fix lawnmowers and post them here-

Advertisement

Anyway on almost any lawnmower in order to get the flywheel off you will need a 15/16 socket which goes on a 1/2 inch socket. I had the socket but not the wrench. And with a wrench and an extender around $25 I decided to make my own. Which I will show through a series of pictures. (This post will also show you how to replace a flywheel key on a Toro lawnmower.

Advertisement

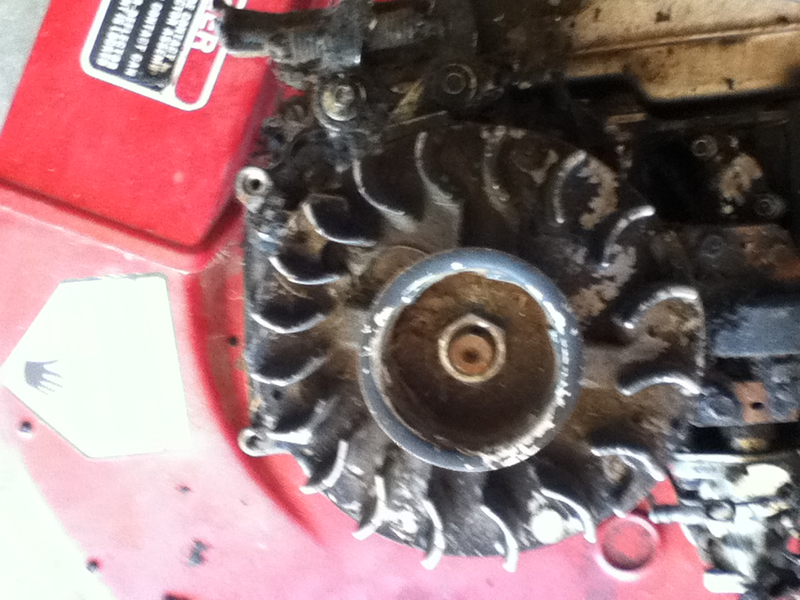

Here is the Flywheel held on by the 15/16 nut.

Advertisement

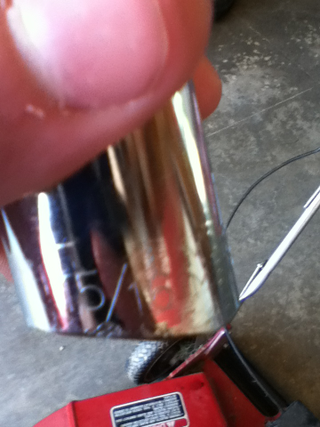

Here is the socket we need to use to get it off.

Advertisement

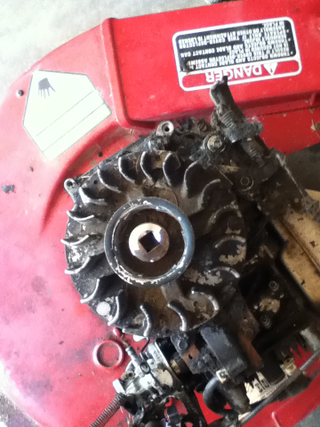

Fits nicely.

Advertisement

Take a 1/4 to a 3/8 adapter and weld it to the socket. After grinding off the shiny finish.

Advertisement

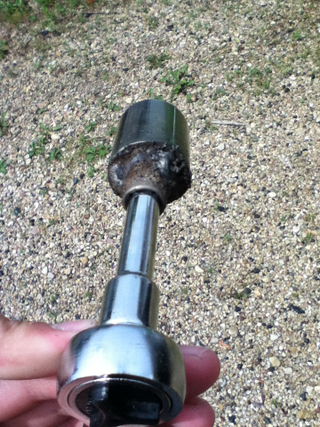

Looks ok and works great.

Advertisement

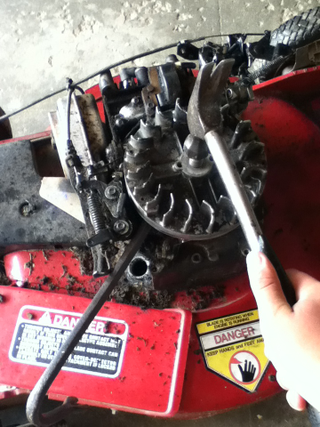

After nut is off pry up on flywheel and hit top with hammer.

Advertisement

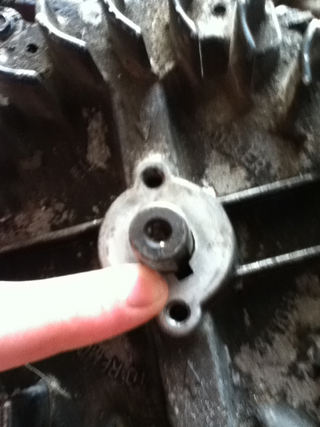

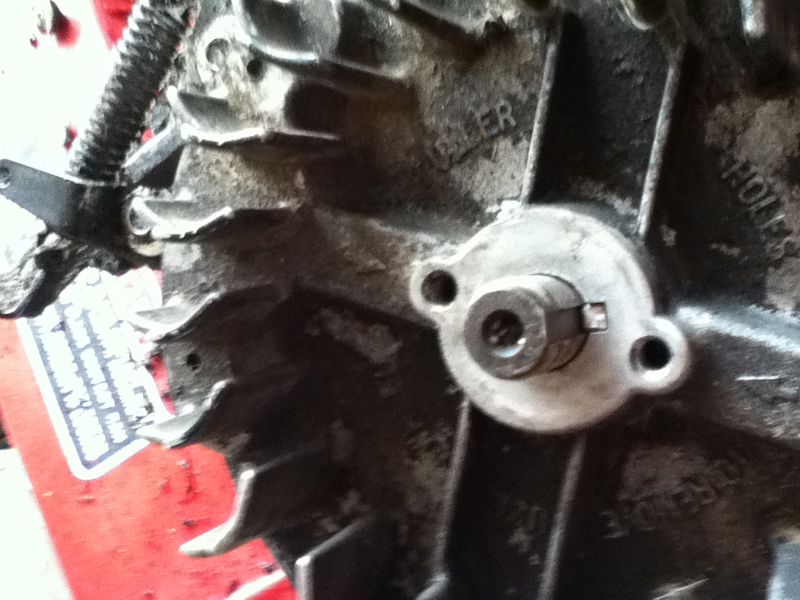

The key goes there.

Advertisement

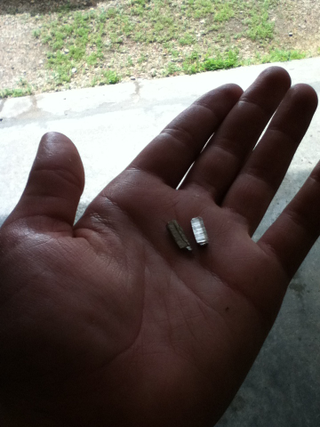

Here you can see that the key split. It does this when you hit an object like a stump or a piece of metal.

Advertisement

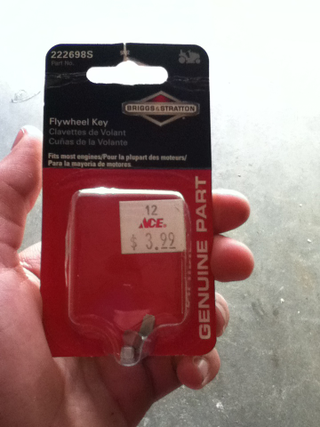

Buy some new ones.

Advertisement

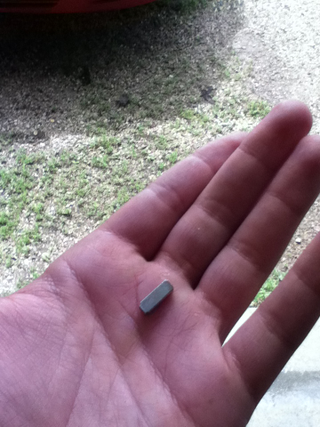

It should be one piece not two.

Advertisement

Slide the new one in and put everything back together and your done.

Advertisement

Hi my name is Vince. I hope you enjoyed this article, I know I sure did. If you would like you can follow me on Twitter @Vincent_Becker1 (No link -_-)
